Here's another port of Super Expander lineart to MINIGRAFIK (download); this time,

's

Kangaroo duo Lionel and Joey:



As with Garfield earlier in this thread, the drawing is primarily made from circle/ellipse arcs and lines. The MG implementation of CIRCLE as sub-routine in BASIC is somewhat slower than the CIRCLE command of SE, but the port draws everything with finer lines and at the slightly higher resolution of MG, 160x192 pixels vs 160x160 of SE:

Code: Select all

10 DIMB%(255),N(7),S(90):GOTO34
11 :
12 B=W*B:IFD>=ETHENE=E+F
13 IFRTHENI=D:D=R:GOSUB20:U=C:V=S:D=I
14 GOSUB20:GOSUB18:I=X:J=Y
15 D=D+K:IFD>ETHEND=E
16 GOSUB20:GOSUB18:@G,I,JTOX,Y:I=X:J=Y:IFD<ETHEN15
17 RETURN
18 X=S*A:Y=C*B:IFRTHENZ=U*Y-V*X*W:X=U*X+V*Y/W:Y=Z
19 X=M+X+.5:Y=N-Y+.5:RETURN
20 Z=D-F*INT(D/F)
21 IFZ<QTHENS=S(Z):C=S(Q-Z):RETURN
22 IFZ<HTHENS=S(H-Z):C=-S(Z-Q):RETURN
23 IFZ<TTHENS=-S(Z-H):C=-S(T-Z):RETURN
24 S=-S(F-Z):C=S(Z-T):RETURN
25 :
26 IFX<0ORY<0THENRETURN
27 IFT$=""THENRETURN
28 IFX>19THENX=0:Y=Y+1
29 IFY>23THENRETURN
30 A1=4352+192*X+8*Y:A2=AD+8*B%(ASC(T$))
31 FORT=0TO7:POKEA1+T,PEEK(A2+T):NEXT
32 T$=MID$(T$,2):X=X+1:GOTO27
33 :
34 FORT=0TO31:B%(32+T)=32+T:B%(64+T)=T:B%(160+T)=96+T:IFT<>30THENB%(192+T)=64+T
35 NEXT:B%(255)=94
36 FORT=0TO7:READN(T):NEXT
37 Q=90:H=180:T=270:F=360:W=5/3
38 FORZ=0TO90:S(Z)=SIN({PI}*Z/180):NEXT
39 :
40 V=36864:POKEV+14,9:POKEV+15,25:POKE646,6:@ON:@CLR
41 G=1:K=10:R=0:AD=32768
42 M=80:N=140:A=23:B=20:D=180:E=270:GOSUB12
43 M=80:N=140:A=16:B=23:D=288:E=306:GOSUB12
44 @1,73,127TO56,127:@1,56,127TO56,140
45 M=80:N=140:A=16:B=23:D=65:E=126:GOSUB12
46 M=65:N=178:A=16:B=3:D=0:E=360:GOSUB12
47 M=62:N=174:A=16:B=3:D=234:E=36:GOSUB12
48 @1,80,178TO156,178
49 M=156:N=9:A=156:B=101:D=180:E=205:GOSUB12
50 M=80:N=96:A=12:B=11:D=288:E=342:GOSUB12
51 @1,91,98TO91,112
52 @1,76,65TO76,76
53 @1,83,65TO83,76
54 M=80:N=50:A=9:B=9:D=252:E=198:GOSUB12
55 @1,75,48 : M=75:N=48:A=1:B=1:D=0:E=360:GOSUB12
56 @1,82,48 : M=82:N=48:A=1:B=1:D=0:E=360:GOSUB12
57 M=70:N=60:A=11:B=3:D=97:E=360:GOSUB12
58 M=60:N=58:A=1:B=1:D=0:E=360:GOSUB12
59 @1,78,37TO70,18:@1,70,18TO66,28:@1,66,28TO74,37
60 @1,85,37TO93,18:@1,93,18TO97,28:@1,97,28TO88,40
61 @1,83,76TO107,105:@1,107,105TO83,133
62 @1,83,90TO96,105:@1,96,105TO83,121
63 M=83:N=127:A=4:B=3:D=0:E=360:GOSUB12
64 @1,68,90TO60,105:@1,60,105TO71,120
65 @1,67,103TO76,116
66 M=74:N=118:A=3:B=3:D=0:E=360:GOSUB12
67 M=56:N=112:A=4:B=3:D=234:E=180:GOSUB12
68 M=52:N=117:A=5:B=2:D=108:E=360:GOSUB12
69 M=53:N=104:A=2:B=3:D=0:E=360:GOSUB12
70 M=57:N=104:A=2:B=3:D=0:E=360:GOSUB12
71 M=55:N=114:A=0:B=1:D=0:E=360:GOSUB12
72 @1,58,119TO66,128
73 @1,55,119TO57,128
74 M=56:N=128:A=2:B=1:D=0:E=360:GOSUB12
75 M=86:N=154:A=13:B=12:D=198:E=18:GOSUB12
76 @1,80,101:@1,76,96:@1,83,107:@1,86,112:@1,73,90
77 M=62:N=168:A=63:B=56:D=47:E=90:GOSUB12
78 M=62:N=168:A=78:B=68:D=22:E=90:GOSUB12
79 @1,75,76TO0,76
80 @1,0,56TO62,56
81 @1,125,178TO125,191
82 @1,140,178TO140,191
83 @1,0,0TO157,0:@1,157,0TO157,191:@1,157,191TO0,191:@1,0,191TO0,0
84 Y=7.375:X=1:T$="LIONEL":GOSUB26
85 Y=8.375:X=1:T$="& JOEY":GOSUB26
86 P$="EDEDEDC@FEFEFED@EDEDEDC@DFEDC@@GC@"
87 FORT=1TO34:POKEV+11,N(ASC(MID$(P$,T,1))-64):FORS=1TO120:NEXT:NEXT
88 :
89 GETA$:IFA$=""THEN89
90 @RETURN:END
91 :
92 DATA 0,179,187,191,198,204,207,212

Lines 40 to 87 correspond to the original program, the rest is boilerplate (CIRCLE sub-routine at line 12, CHAR sub-routine at line 26, some array initialization in lines 34 to 38).

Greetings,

Michael

[allenhuffman]

I am trying to find why I was quoted here? I don’t see a post?

[Mike]

I am trying to find why I was quoted here? I don’t see a post?

That's Denial's way of notifying someone about a post that might be of his or her interest.

[MrSterlingBS]

Good morning,

here is some nice graphic i like to share with you.

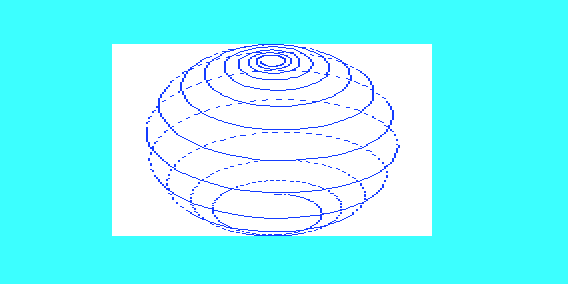

- LOXODROME -


Code: Select all

10 @on:@clr
15 b=-1.2:w=.06:d=.6
20 xa=80:xb=80:yb=ya
21 ya=96-96*sin(b)*cos(d)-96*cos(l)*cos(b)*sin(d)
30 l=l+.1:b=b+w*.1*cos(b)
40 x=80+79*sin(l)*cos(b)/1.25
50 y=96-96*sin(b)*cos(d)-96*cos(l)*cos(b)*sin(d)
51 z=sin(b)*sin(d)-cos(l)*cos(b)*cos(d)
60 if z>0 then:@1, xa,ya to x,y:xa=x:ya=y
61 if z<=0 then:@1,((2*x+xa)/3),((2*y+ya)/3) to x,y:xa=x:ya=y
70 if l<80then30
80 geta$:ifa$=""then80
90 @return

[armypavarmy]

Hi
I wrote the listing you entered but it doesn't work.
Problem with line 30 at the beginning.
not possible to insert 1=1+.1
And with letter I=I+.1 it doesn't work either.
Thanks for your help
Best regards....Armando

[MrSterlingBS]

Hi Armando,

I will take a look tomorrow…

[MrSterlingBS]

Hello,

attached the txt file for the VICE Emulator.
Just copy and paste the text in VICE.
This version should work, i have tested it right now.

BR
Sven

Loxodrome.zip

(402 Bytes) Downloaded 259 times

[Vic20-Ian]

Hi
I wrote the listing you entered but it doesn't work.
Problem with line 30 at the beginning.
not possible to insert 1=1+.1
And with letter I=I+.1 it doesn't work either.
Thanks for your help
Best regards....Armando

Looks like a lower case L to me, l, use this in Line 50 and 70 also.
